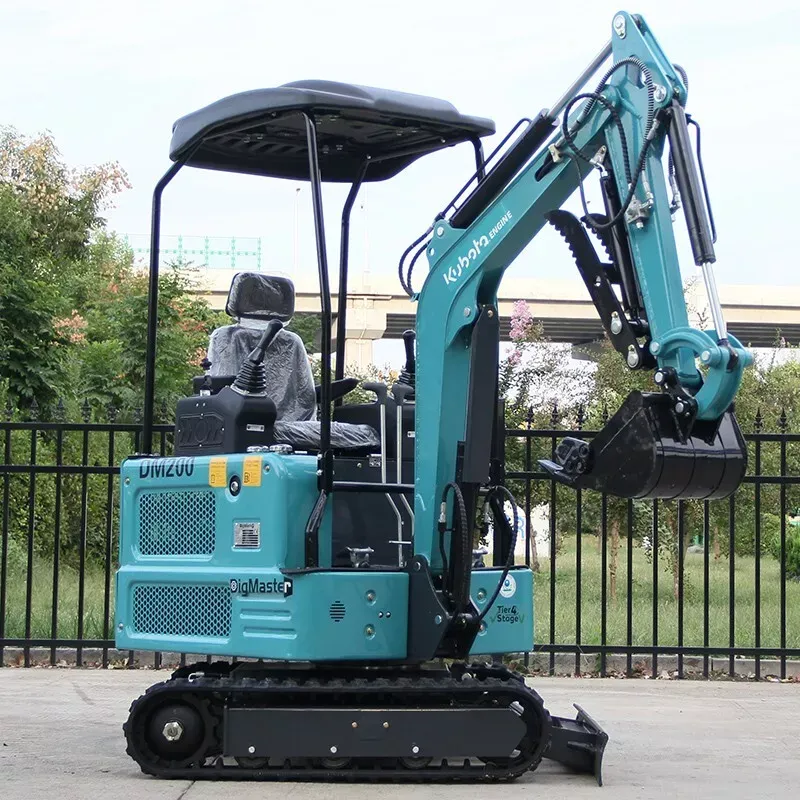

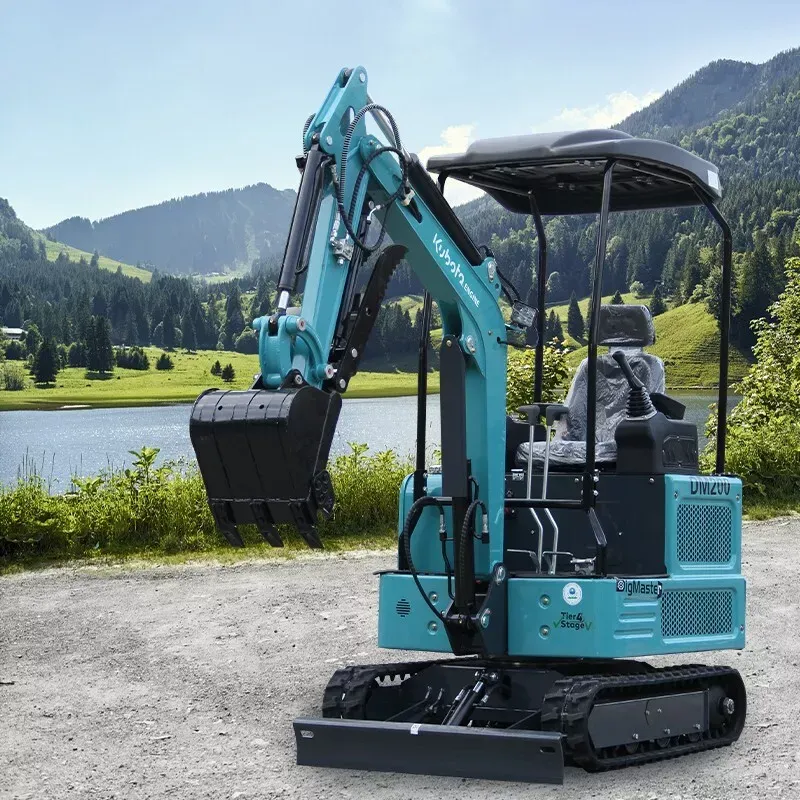

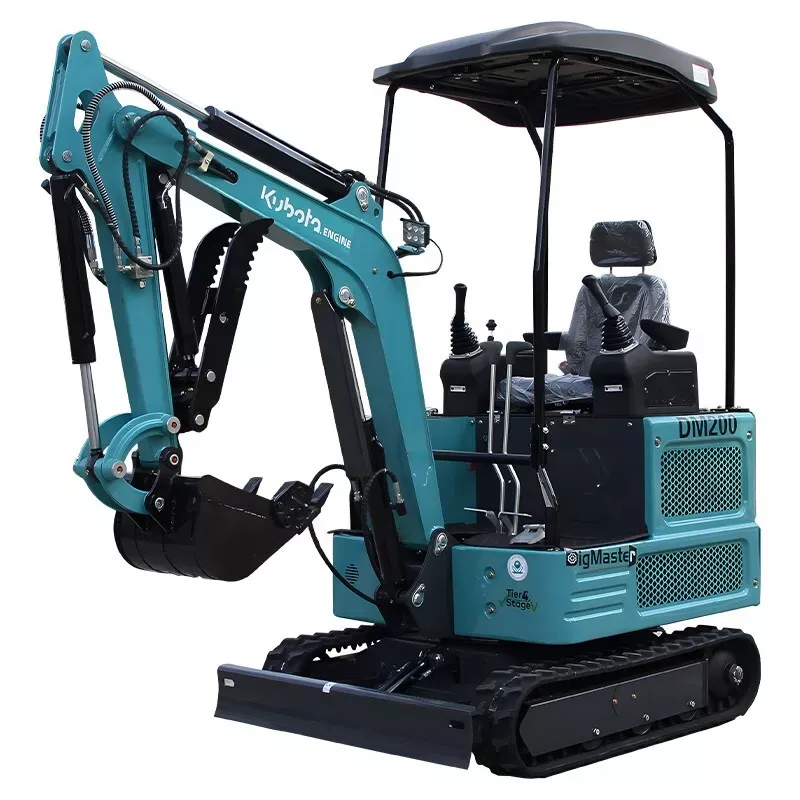

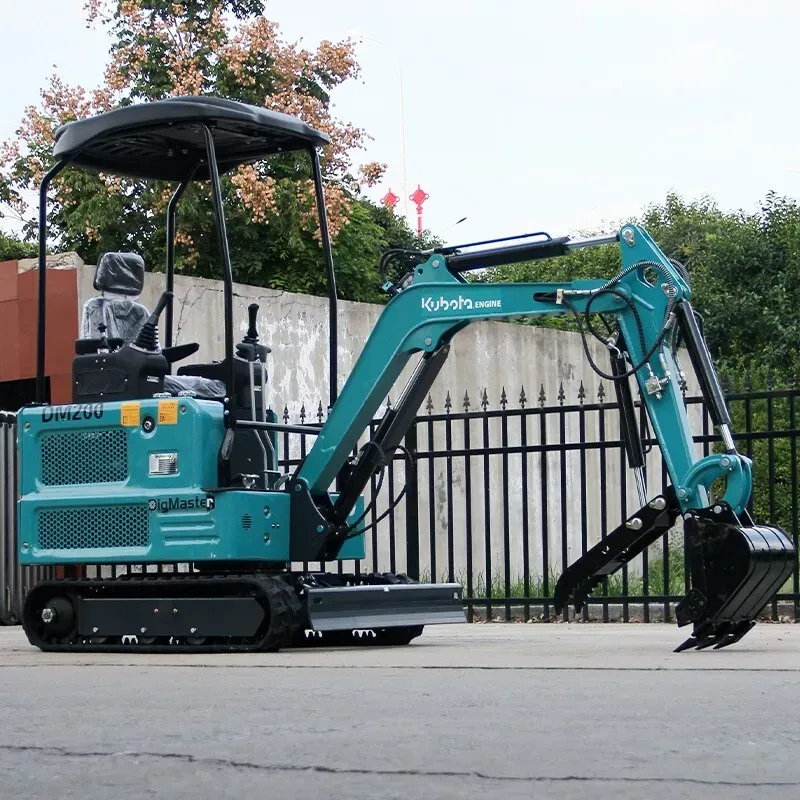

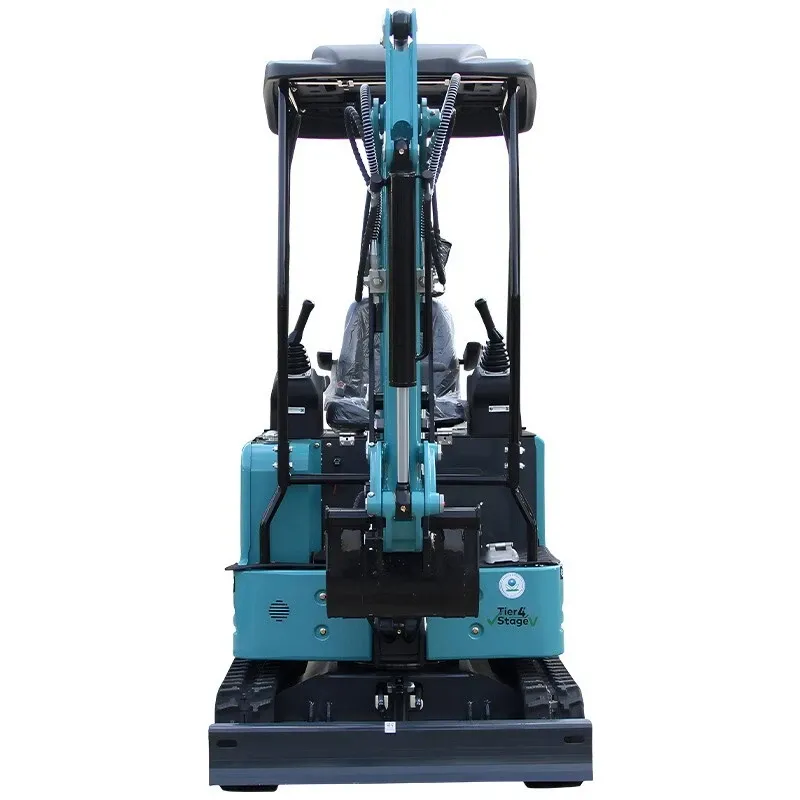

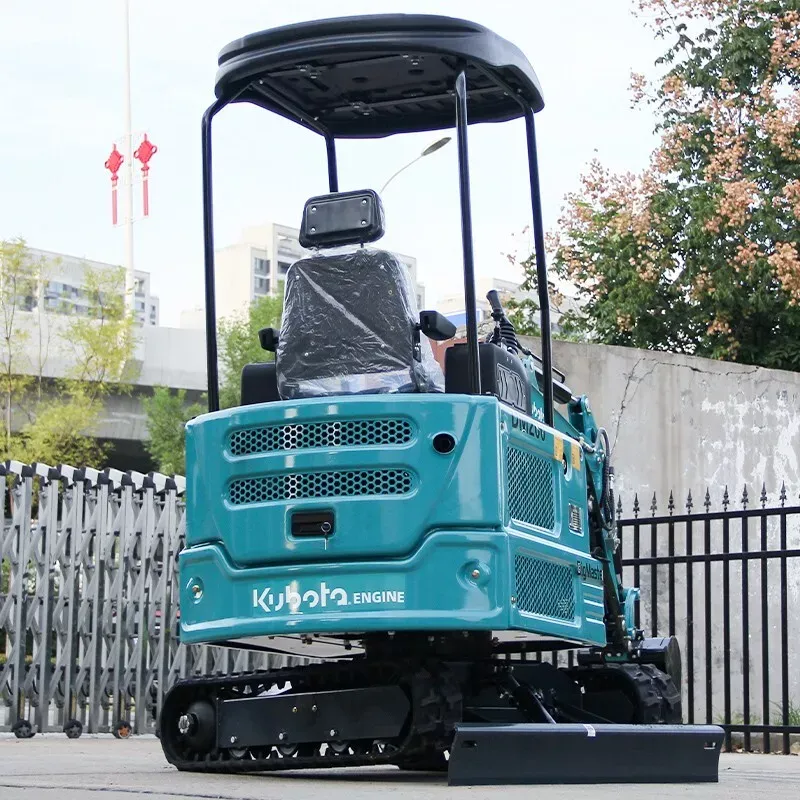

🚧 DigMaster DM200 Mini Excavator – 2024 Model

SpecificationDetails

4,000 lbs Mini Excavator Digger Crawler Hydrauic Thumb KUBOTA Diesel EPA Engine

Items Description

4,000 lbs Mini Excavator Digger Crawler Hydrauic Thumb KUBOTA Diesel EPA Engine1

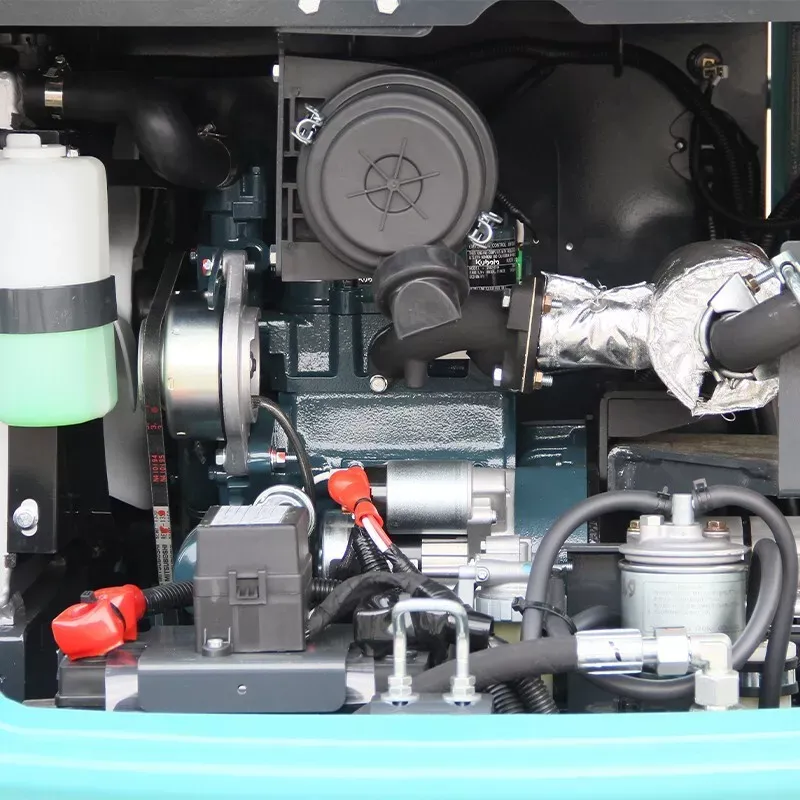

Engine brand :Kubota Power

Engine model: Z482

Maximum horsepower (ps) :11.4

Maximum power (Kw): 8.2

Maximum speed (rpm): 3000

Displacement (L): 0.5

Number of cylinders: 2

Cooling method :Water cooling

Engine oil change amount (L): 2.5

Fuel form: Diesel

Fuel grade: 0/-10

Theoretical fuel consumption: (L/h) 0.8-1.2

Machine operating weight (kg) 1125

Bucket capacity (m³) 0.014

Travel speed Low/high speed (Km/h) 0-1.5

Gradability (%) 30%

Ground pressure (Kpa) 35

Maximum digging force (kN) 10.8

Maximum digging radius (mm) 3265

Maximum digging depth (mm) 2114

Maximum digging height (mm) 2851

Maximum unloading height (mm) 2018

Rated set pressure (Mpa) 16MPa

Maximum set pressure (Mpa) 18MPa

Transport length (mm) 2547

Transport width (mm) 1100

Transport height (mm) 2397

Counterweight ground clearance (mm) 362

Bucket width (mm) 400

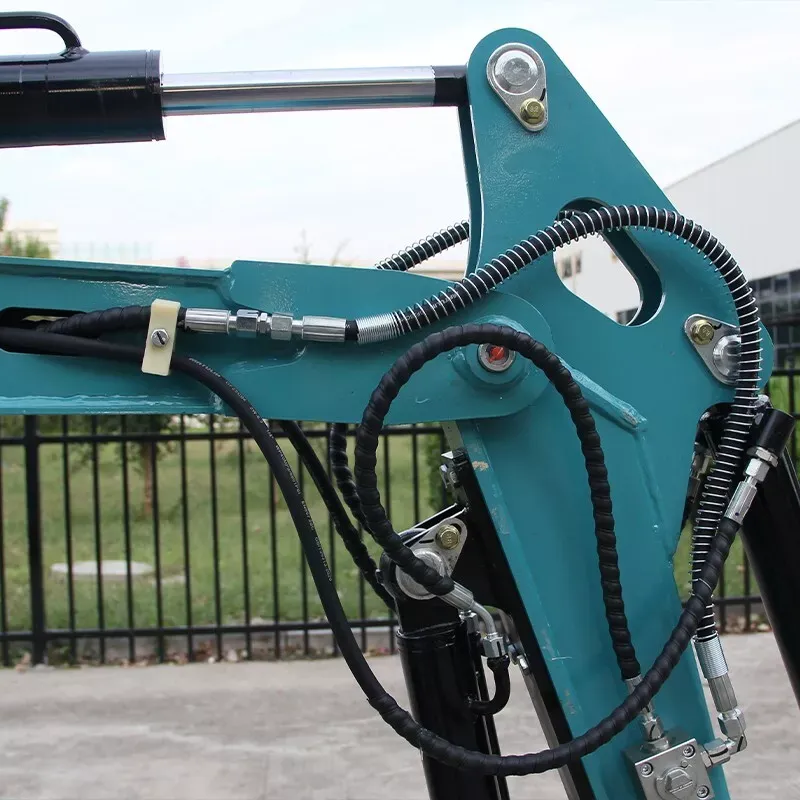

Boom length (mm) 1675

Arm length (mm) 900

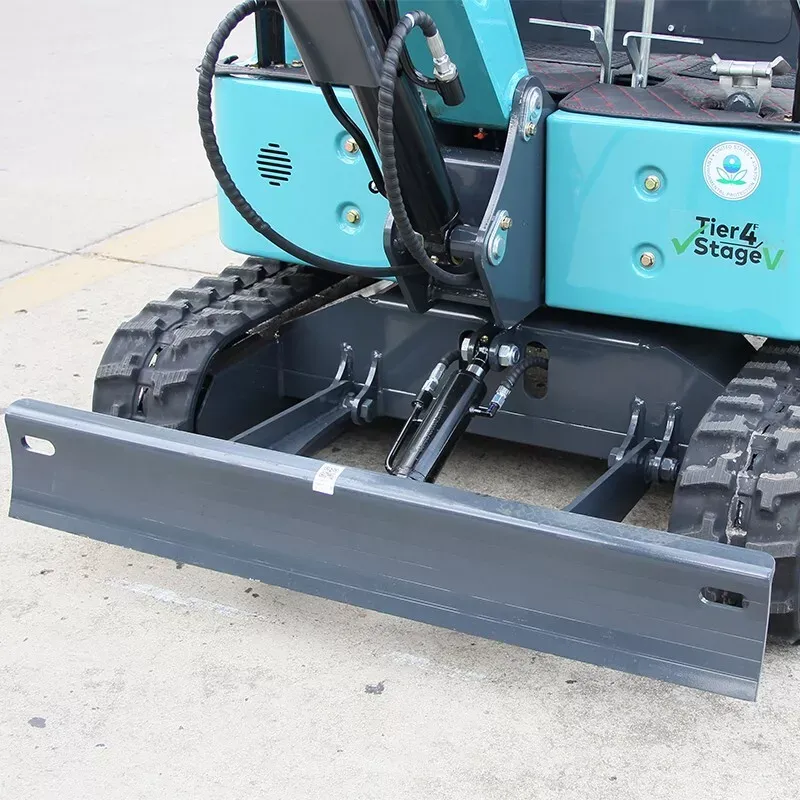

Bulldozer blade width (mm) 1100

Fuel tank (L) 12

Hydraulic oil tank (L) 12.5

Widely used:Can be used in conjunction with quick change tools to replace various auxiliary tools such as scarifiers, rakes, rotary drills, wood grabbers, tilt buckets, hydraulic thumb clamps, mud buckets, etc, Due to its compact and user-friendly design, this trenching machine is very suitable for drilling, excavation, grabbing, pushing soil, cleaning ditches, small-scale excavation, rock fragmentation, landscape beautification or construction.

The micro crawler hydraulic excavator has the advantages of flexibility, practicality, high configuration, high performance, low fuel consumption, beautiful appearance and wide application. It is suitable for loosening soil in vegetable greenhouses, landscaping in municipal departments, digging soil in orchards and nurseries, crushing concrete roads, mixing sand and gravel, and construction in narrow spaces, reducing maintenance and operation costs and improving the degree of mechanization.

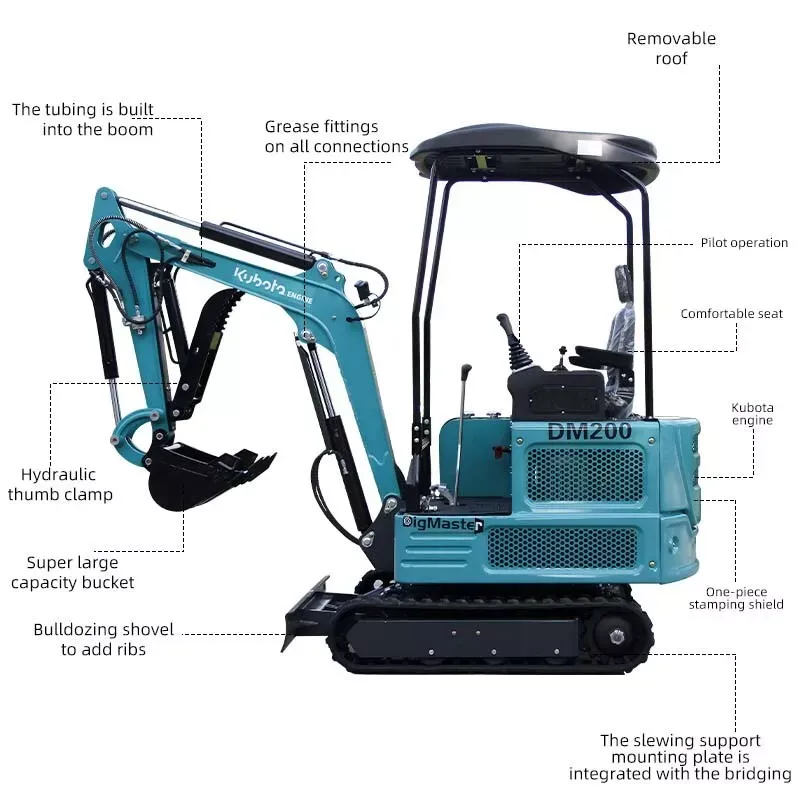

Compact but sturdy: Our trenching machine uses a small but high-performance KUBOTA engine, which is smooth in function and easy to maintain. This excavator is compact in size, but powerful in function, and can withstand intensive construction projects without sacrificing performance.

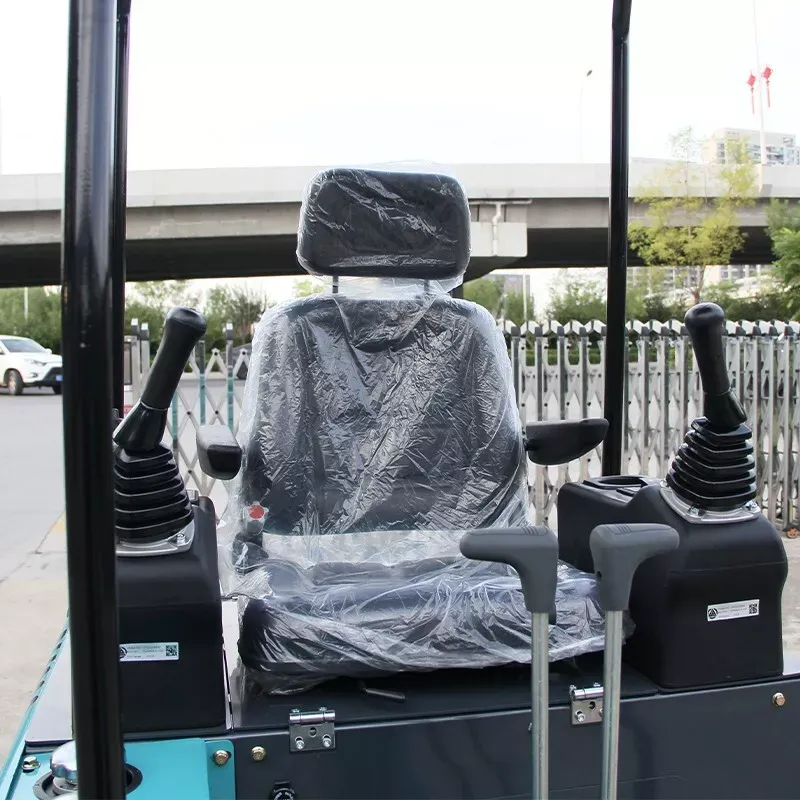

User friendly design: The micro excavator is very easy to operate even when used for the first time, and can easily operate all excavation, drilling, or bulldozer operations.

With this mini excavator, your construction project is sure to succeed!
